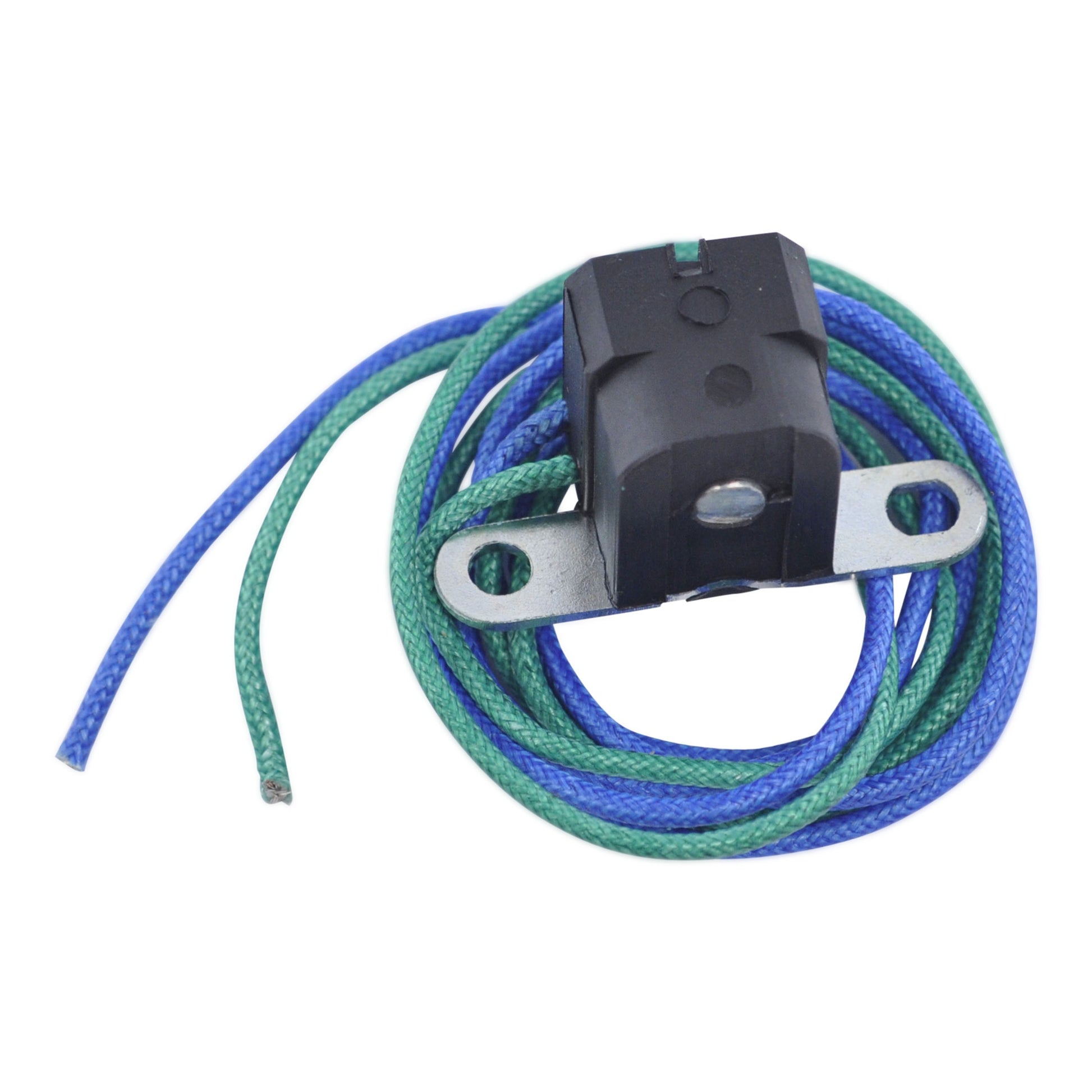

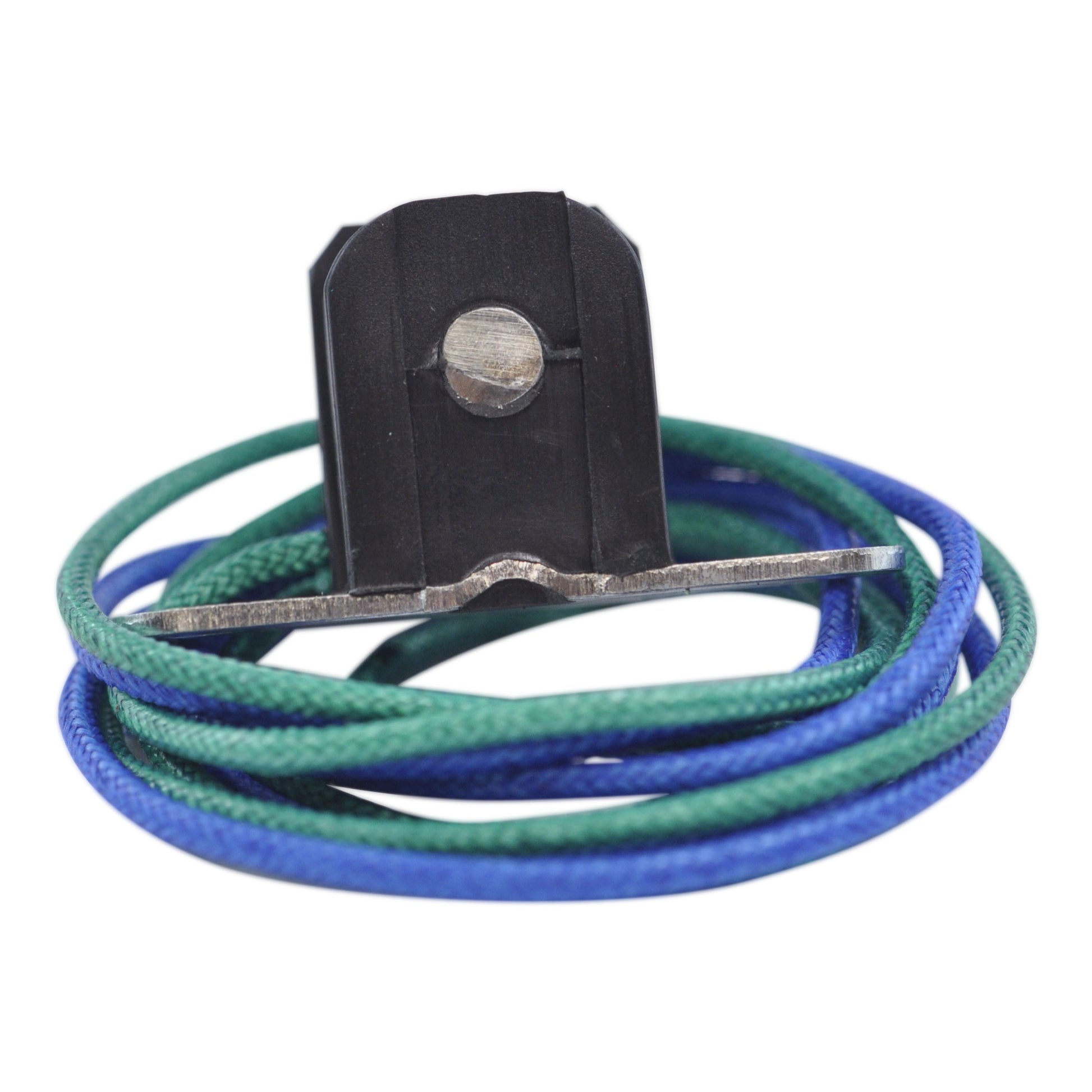

Suzuki DR350 Pickup Trigger Coil. Also fits Suzuki DR400Z and DR600S. Stator Pulse Coil

Suzuki DR350 Pickup Trigger Coil. Also fits Suzuki DR400Z and DR600S

Good quality aftermarket part.

UK Stock. Free fast UK Shipping. International orders welcome.

Specifications.

• Hole Spacing: 35mm
• Pole Piece Projection: 14mm
• Height of Pole Piece above Hole Centers: 5mm
• Resistance: 500 Ohms (approx.)

Fits the following models.

• Suzuki DR350
• Suzuki DR400Z
• Suzuki DR600S

Please check pictures and dimensions carefully before buying.

Suzuki did not supply this Pickup Trigger Coil as a stand alone part originally, so there is no direct part number to reference. For reference, the entire stator assembly which includes this trigger coil has part number 32101-14D10-000.

What is the Suzuki DR350 Pickup Trigger Coil? The Pickup Trigger Coil, or Pulse Sensor Coil, detects each rotation of the engine and sends a signal pulse, or trigger pulse, to the ignition system to tell it to fire a spark. If the Trigger Coil gets damaged it can stop sending the required pulse to the ECU stopping the motor from running.
