Replacement CDI Unit to fit Honda Twin 600cc / 650cc Motorbikes. (1989 -1995)
Honda Transalp CDI with the Side Stand Cut-Off Feature, the same as the OEM CDI units.
This is a brand new quality after-market part.
UK Stock. Fast Shipping on all orders.
International shipping options available at checkout.
Will fit:
- Honda XRV 650 Africa Twin (1988 – 1989)
- Honda XL 600V (1989 – 1996) (XL600V-K through to XL600V-R)
NOTE: WILL NOT WORK WITH EARLY Honda Transalp 1987-1988 XL600V-H or XL600V-J. They use the MM9 CDI which looks the same but is different.
Yes, this Honda Transalp CDI does have the factory Side Stand Cut-Off feature.
Numbers for reference purposes:
Replaces OEM Honda Part Number: 30410-MS8-610 (MS8 CI558)
Does NOT replace Part Number: 30410-MM9-008 (MM9 CI529) or 30410-MM9-830 (MM9 CI558)
BRAND: CDI Ignition Technology
MANUFACTURER: Adessi
MPN:CDI-HON-TRA-MS8
Note: The Honda XL600V Translap and XRV650 Africa Twin motorcycles use a Twin Spark ignition system. Therefore they require a CDI that has two spark outputs. They are also Twin Cylinder bikes so they require two CDI units, giving a total of 4 spark outputs.
Will this CDI replace my existing Honda Transalp XL600V CDI? Yes, if your Honda Transalp was manufactured between 1989 and 1995 it should be fitted with the MS8 CI558 type CDI unit. These CDIs have a built in side stand cut off switch for safety and the original Honda CDI had the part number 30410-MS8-610, sometimes written as 30410MS8610. It may be an idea to swap both CDI units at the same times as if one has failed, it is likely the other may not last much longer either.
Share

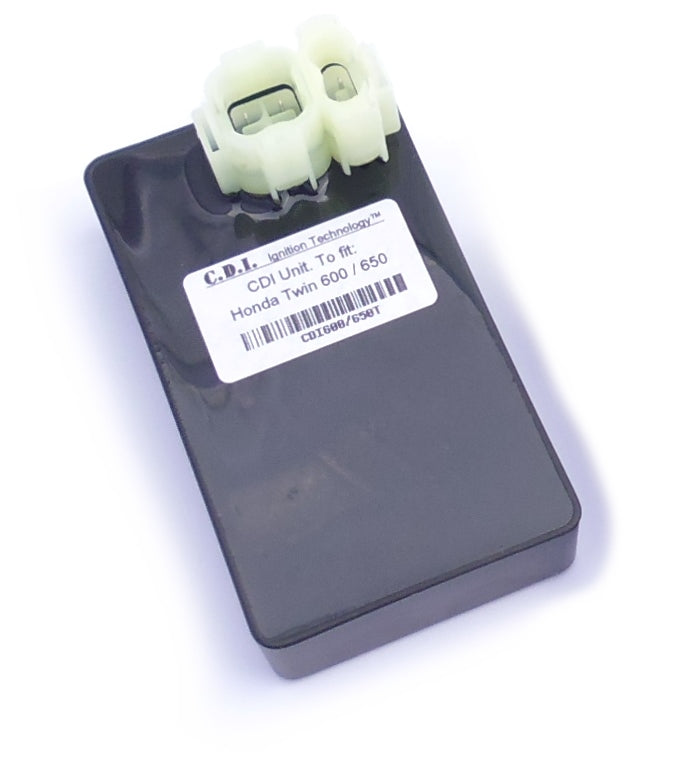

![Honda Transalp CDI, XL 600V, XRV 650 Africa Twin ECU (1989 - 1995) 30410-MS8-610 (MS8 CI558)](http://www.gtmotoparts.com/cdn/shop/files/Transalp-CDI-MS8-CI558.jpg?v=1710434156&width=1445)
